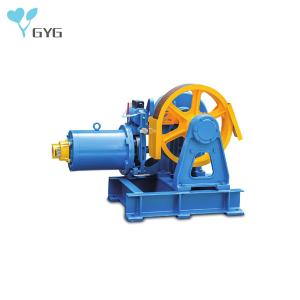

0.5-2.0 M/S ELEVATOR TRACTION SYSTEM MAX STATIC LOAD 6000 KGS

Brand Name : GYG

Model Number : YJ200A

Place of Origin : China

MOQ : 1SET

Price : 1500-3500 USD/SET

Payment Terms : Western Union, T/T，, L/C

Supply Ability : 10000Sets /Year

Delivery Time : 7-10 working days

Packaging Details : Standard Packing,Packed in Wooden box or as per client's request

LOAD : 630-1000 KGS

LIFT SPEED : 0.5-2.0 M/S

MOTOR POWER : 35-18.5 KW

POLE : 4/6

Weight : 580kg

Contact Now

GEARED TRACTION MACHINE , GEARED MACHINE , MAX STATIC LOAD 6000 KGS,

ELEVATOR TRACTION MACHINE , ELEVATOR PARTS

0.5-2.0 M/S ELEVATOR TRACTION SYSTEM MAX STATIC LOAD 6000 KGS

PERFORMANCE PARAMETERS:

Suspension:1:1

Max.Static Load : 6000kg

Control : VVVF

Brake : DC110V 1.5A

Weight : 580 kgs

Load (kg) Lift Speed(m/s) Ratio Sheave Diam (mm) Rope Sheave(mm) Motor Power (kw) Pole Motor Speed (rpm)
630 0.5 53:1 Φ530 4×Φ13×20 3.5 6 960
630 1 75:2 Φ530 4×Φ13×20 5.5 4 1360
630 0.75 47:2 Φ530 4×Φ13×20 8.5 4 1465
630 2 61:3 Φ530 4×Φ13×20 11 4 1465
800 0.5 53:1 Φ530 5×Φ13×20 5.5 6 960
800 1 75:2 Φ530 5×Φ13×20 8.5 4 1360
800 1.75 47:2 Φ530 5×Φ13×20 11 4 1465
800 2 61:3 Φ530 5×Φ13×20 11 4 1465
1000 0.5 53:1 Φ530 5×Φ13×20 5.5 6 960
1000 1 75:2 Φ530 5×Φ13×20 8.5 4 1360
1000 1.75 47:2 Φ530 5×Φ13×20 15 4 1465
1000 2 61:3 Φ530 6×Φ13×20 15/18.5 4 1465


0.5-2.0 M/S ELEVATOR TRACTION SYSTEM MAX STATIC LOAD 6000 KGS

0.5-2.0 M/S ELEVATOR TRACTION SYSTEM MAX STATIC LOAD 6000 KGS

PAYMENT&SHIPPING :

0.5-2.0 M/S ELEVATOR TRACTION SYSTEM MAX STATIC LOAD 6000 KGS

0.5-2.0 M/S ELEVATOR TRACTION SYSTEM MAX STATIC LOAD 6000 KGS

CERTIFICATIONS:

0.5-2.0 M/S ELEVATOR TRACTION SYSTEM MAX STATIC LOAD 6000 KGS

EXHIBITION SHOW:

0.5-2.0 M/S ELEVATOR TRACTION SYSTEM MAX STATIC LOAD 6000 KGS


Product Tags:

Elevator Traction System 2.0 M/S



Elevator Traction System 6000KGS



6000KGS elevator geared machine
